2-post lift SPOA3TS-5-EH1-MB

3.5 t, electrohydraulic, pushbutton operation, front support arms 3-part, asymmetrical, total height 3765 mm

MPN: SPOA3TS-5-EH1-MB
Category:
Tags: ,

Share on:

Description

The electro-hydraulic 2-post lift with asymmetrical 3-part support arms enables lifting from passenger cars (SMART) up to the V-class due its flexible reception area. The control on both sides offers a number of practical benefits.

  • SPO series – the most sold lift in the world
  • Maximum safety with Rotary 3PSS Concept
  • Second control unit included
  • 3PSS Concept (3 Phase Security System) includes:
    • Integrated mechanical safety catches with automatic actuation on both sides.
    • Load-free mounted synchronization wire rope hoists secure the load during the lifting and lowering operation.
    • Hydraulic system secured by check valve including maintenance-free high-pressure cylinders in both columns.
  • The asymmetrical column and support arm design allows for optimal door clearance.
  • The combination of maximum clearance width with minimum external dimensions and a construction without base frame ensures that the lifting platform can be driven on without any problem.
  • The rotary disks are pluggable and can be extended or replaced with attachment pieces in a stable and cost-effective way.
  • For improved ergonomics and efficiency, a 2nd control panel is included. In this case, one control panel is equipped with a 220 V socket (fused with 16 ampere for electric hand tools) and the second with a compressed air preparation.
  • During lifting, the upper safety switch-off effectively protects vehicles with greater overall height from damage.
  • The electro-hydraulic design with just one unit ensures energy-saving operation with fast lifting and lowering times (electricity price savings).
  • Flanged to the upper part of the lifting column, the unit is protected from external influences and allows greater range of motion.
  • Rotary Hydraulics represents maximum ease of service at minimum operating costs.
  • The support arms are automatically locked when lifted. When the platform is fully lowered, this lock is released automatically. Ease of use is enhanced due to the particularly fine grid and a manual unlocking function.

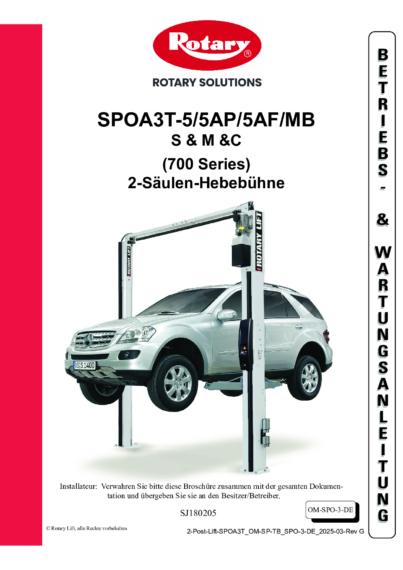

Media

Similar Products

Accessories

Delivery

Tech Data

Features2-post lift SPOA3TS-5-EH1-MB2-post lift SPOA3TS-5-EH1-MB2-post lift SPOA3TS-5-EH2-MB2-post lift SPOA3TS-5-EH2-MB
Number of columns2
Mode of driveelectrohydraulicelectrohydraulic
Controlelectricelectric
Type of installationfloor mountedfloor mounted
Rated load capacity3500kg3500kg
Max. lifting height1957mm1957mm
Lifting time30s30s
Min. plate height94mm94mm
Max. plate heigh154mm154mm
Clear span between2560mm2560mm
Clear span between (out)3000mm3000mm
Column height3865mm4170mm
Drive-through width2336mm2336mm
Switchoff level3760mm4065mm
Required ceiling height3925mm4230mm
Surface coatingPowder coatedPowder coated
Arm layoutasymmetricalasymmetrical
Telescopic front arms3-fold3-fold
Telescopic rear arms2-fold2-fold
Min. front arm length550mm550mm
Max. front arm length1106mm1106mm
Min. rear arm length876mm876mm
Max. rear arm length1472mm1472mm
Driving power4,0kW4,0kW
Electrical connection230/400 V | 50 Hz
Height3765mm4070mm
