Tyre changer NAV101 400 V - 3 Ph - 60 Hz

Tyre changer NAV101 230 V – 3 Ph – 50 Hz

Mounting head and mounting lever, for commercial vehicle tubeless tyres, synchronized double bead breaking, max. speed 8 rpm, hydraulic operating unit, truck, rim diameter 11 – 27″, max wheel width 540 mm | Red (RAL 3002)

MPN: ROT.NV101.200501
Category:
Tags: ,
Request Information

Share on:

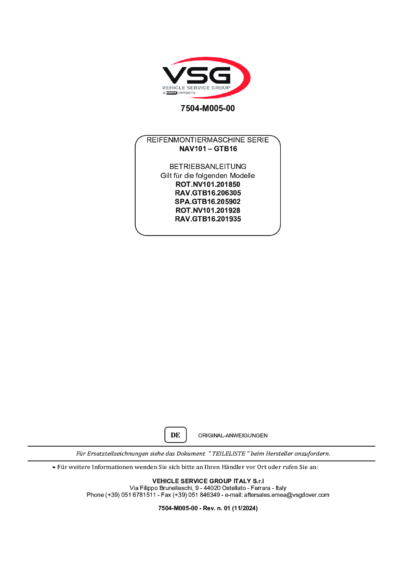

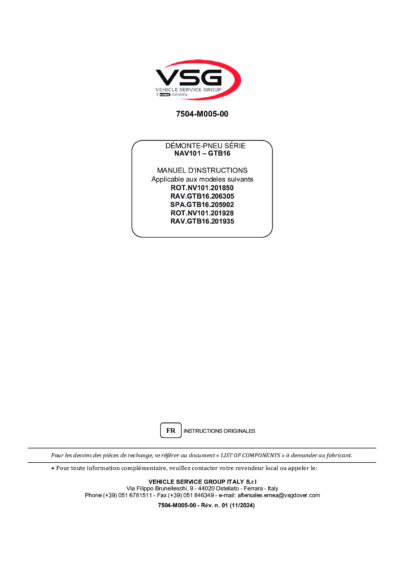

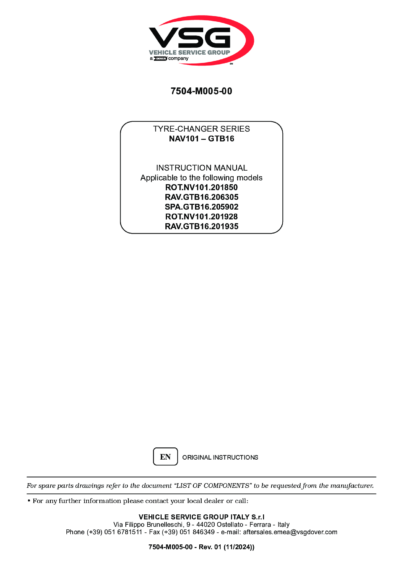

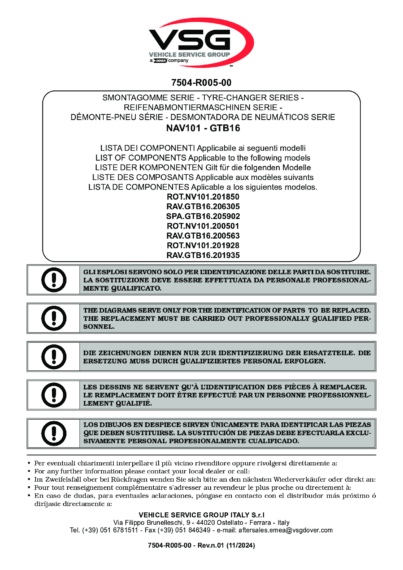

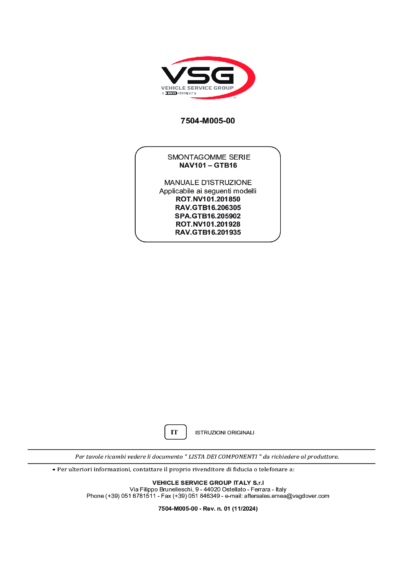

Media

Similar Products

Accessories

Tech Data

FeaturesTyre changer NAV101 230 V - 3 Ph - 50 HzTyre changer NAV101 230 V – 3 Ph – 50 HzTyre changer NAV101 400 V - 3 Ph - 50 HzTyre changer NAV101 400 V – 3 Ph – 50 Hz
Mounting head designwith tire leverwith tire lever
Mounting arm designmoveablemoveable
Mounting column designrigidrigid
Colour3002RAL3002RAL
TeqLinknot possiblenot possible
Workshop-Netnot possiblenot possible
Clamping device designcentralcentral
Min. clamping capacity11″11″
Max. clamping capacity27″27″
Max. rim width52″52″
Min. rim diameter11″11″
Max. rim diameter27″27″
Tire type truckStandardStandard
Max. wheel width540mm540mm
Max. wheel diameter1320mm1320mm
Max. wheel weight1200kg1200kg
Automatic bead-breaking movementNoNo
Bead breaker force12,5kN12,5kN
Number of mounting speeds22
Rotation speed8rpm8rpm
Max. torque2600Nm2600Nm
Chuck motor rating2kW2kW
Driving power15kW15kW
Electrical connection400 V | 50 Hz400 V | 50 Hz
Phases33
Fuse protection16A slow-blow16A slow-blow
Width2810mm2810mm
Depth1410mm1410mm
Height2130mm2130mm
Weight680kg680kg
