Description
Blitz pit lifts captivate with their outstandingly conceived safety design combined with ergonomic operating comfort – without compromises. This means we set standards for modern lifting technology.

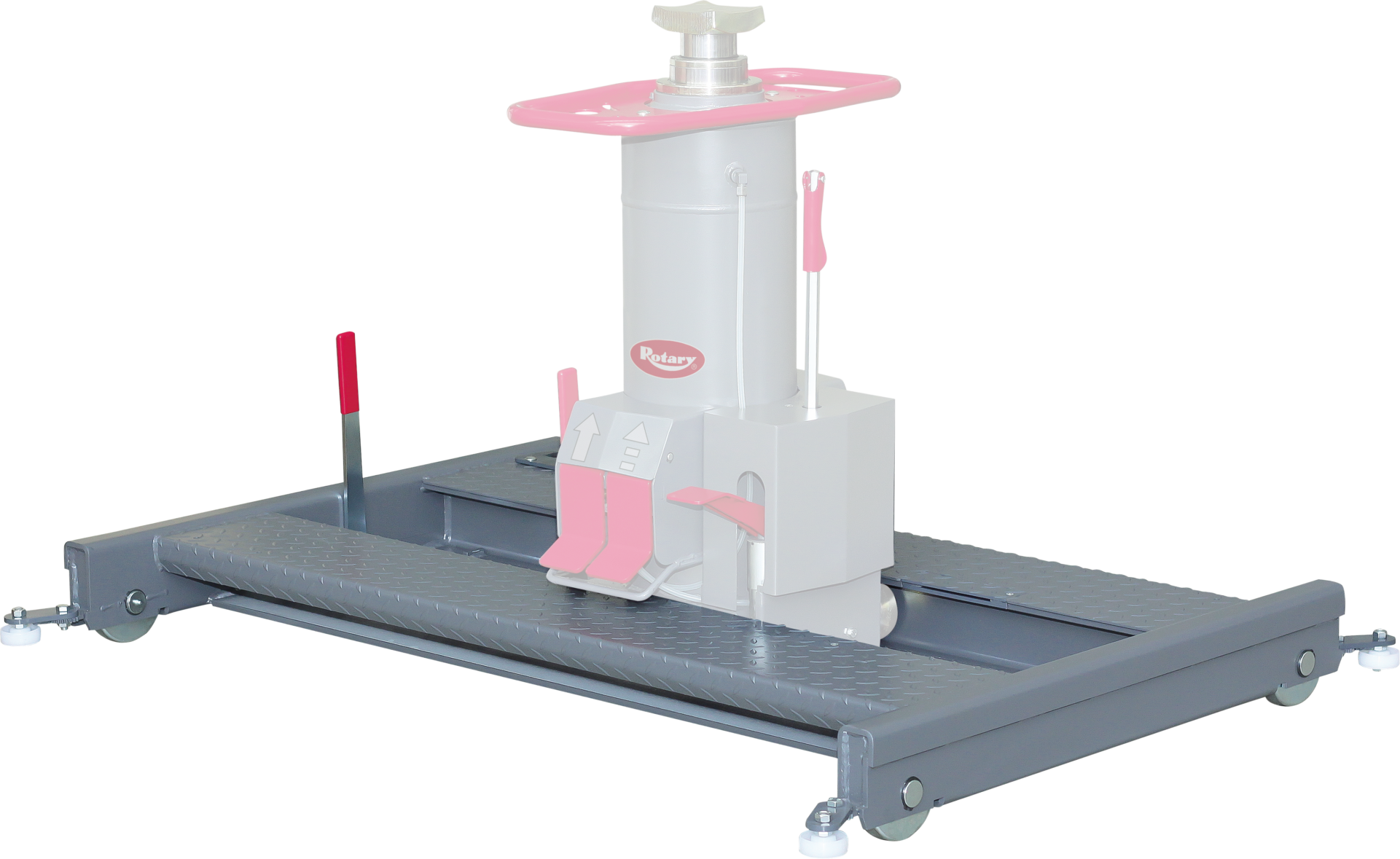

- Blitz R – the optimum in connection with rails.
- Patented operation on both sides (optional)
- 30% faster lifting speed (optional)
- Optimal Ergonomics
- Made in Germany – 125 years’ experience
- Patented operation on both sides (optional) – The time required to accommodate a vehicle is reduced to a minimum, it is no longer necessary to leave the pit.
- Double acting air motor (optional) – enables a 30% higher lifting speed.
- Totally covered air motor makes cleaning easier and reduces the risk of injury (optional).
- Integrated tool tray brings the tool to the mechanic, not the other way round.
- Needle bearing-mounted chassis pulleys allow the lift to be moved about effortlessly in the pit.
- Wheel lock for lifting unit and chassis (M & R Version)
- Ergo Chromatics – All operating controls are marked in color with the color red and thus effectively prevent incorrect operation.
- Ergonomic chassis – The newly designed chassis bring the mechanic closer to the lift, and therefore closer to the vehicle.
- 2-layer surface finish – Opulent coating process for perfect protection against corrosion.
- Slim Design – With the benefit of full lateral adjustment, the ground level construction method permits maximum freedom of movement.
- Hydraulic-pneumatic automatic return allows the piston to return quickly with or without load.
- Extra-long cylinder heads – Guarantee optimum absorption of lateral forces.
- Fully hydraulic lifting unit – The piston rods are sprinkled with oil with each lifting/lowering movement – no rust on the cylinder wall and piston rod!
- Infinitely variable creep lifting speed – important for delicate lifting and for the deployment of power units.
- Hydraulic-pneumatic quick lift ensures a quick start-up of the piston rods up to the lifting point.
- Operation via foot pedals – the hands remain free to carry out work on the vehicle.
- Basic: The Entry into the World of the Blitz Pit Lift With normal lifting and lowering speeds and without cover.
- Plus: The design for the budget-conscious operator. With all features, and just one operating unit.
- Premium: The integrated pit lift for perfect ergonomics in the workplace. With 30% greater lifting speed and two-sided operation.
INDIVIDUAL SOLUTIONS
Special rollers and special chassis on request
