Double scissor lift VAS 791017

3.5 t, electrohydraulic

MPN: VAS 791017
Category:
Tags:

Share on:

Description

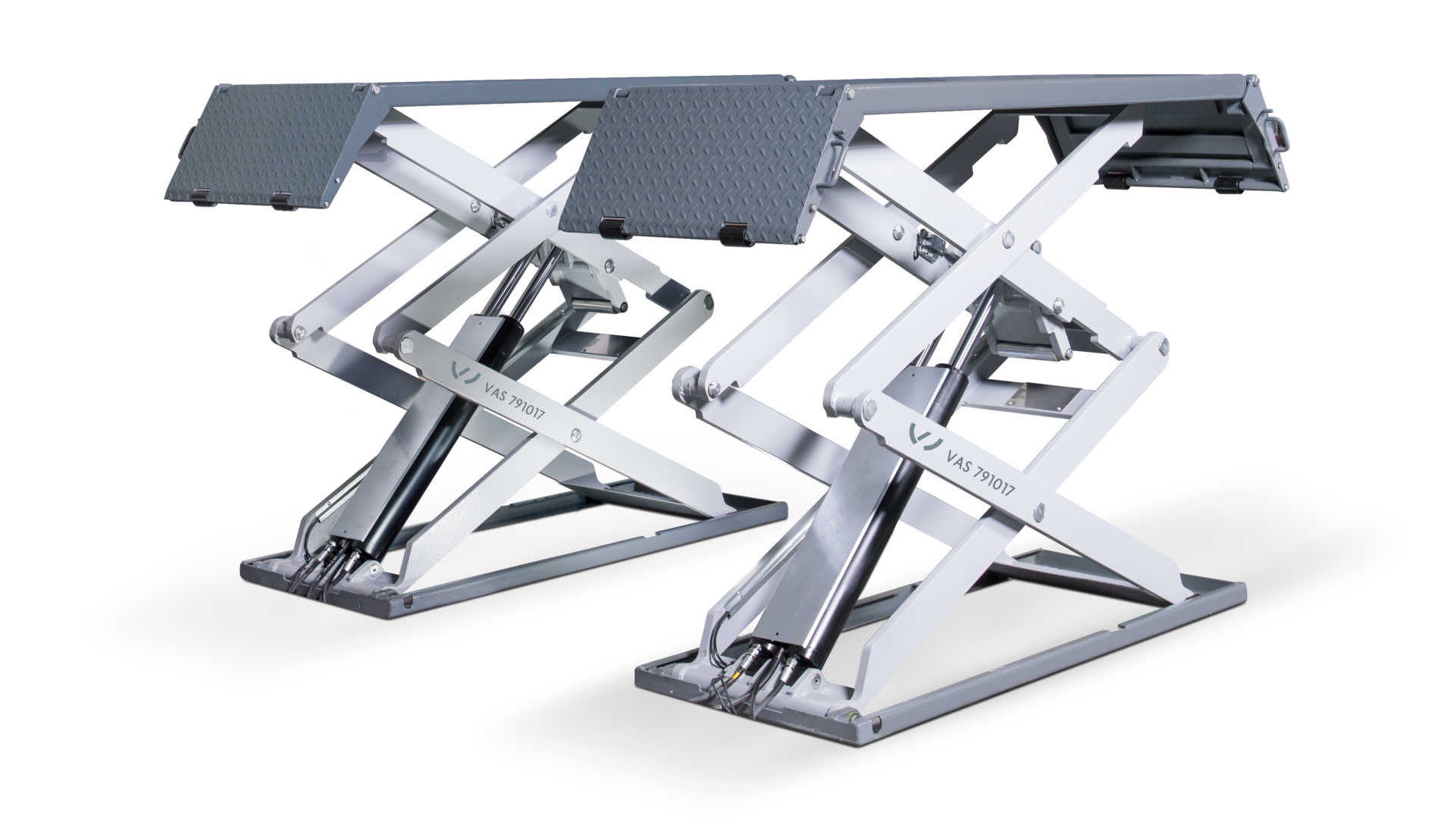

The low-profile double scissor lift VAS 791017 has been specially designed for the service and repair sector. The newly designed flexible mounting platforms allow for a broad mounting range.

  • Best corrosion protection as standard
  • Very robust steel construction
  • Fully matured, reliable hydraulics
  • Standard hot-dip galvanizing with additional powder coating of the platform and base frame.

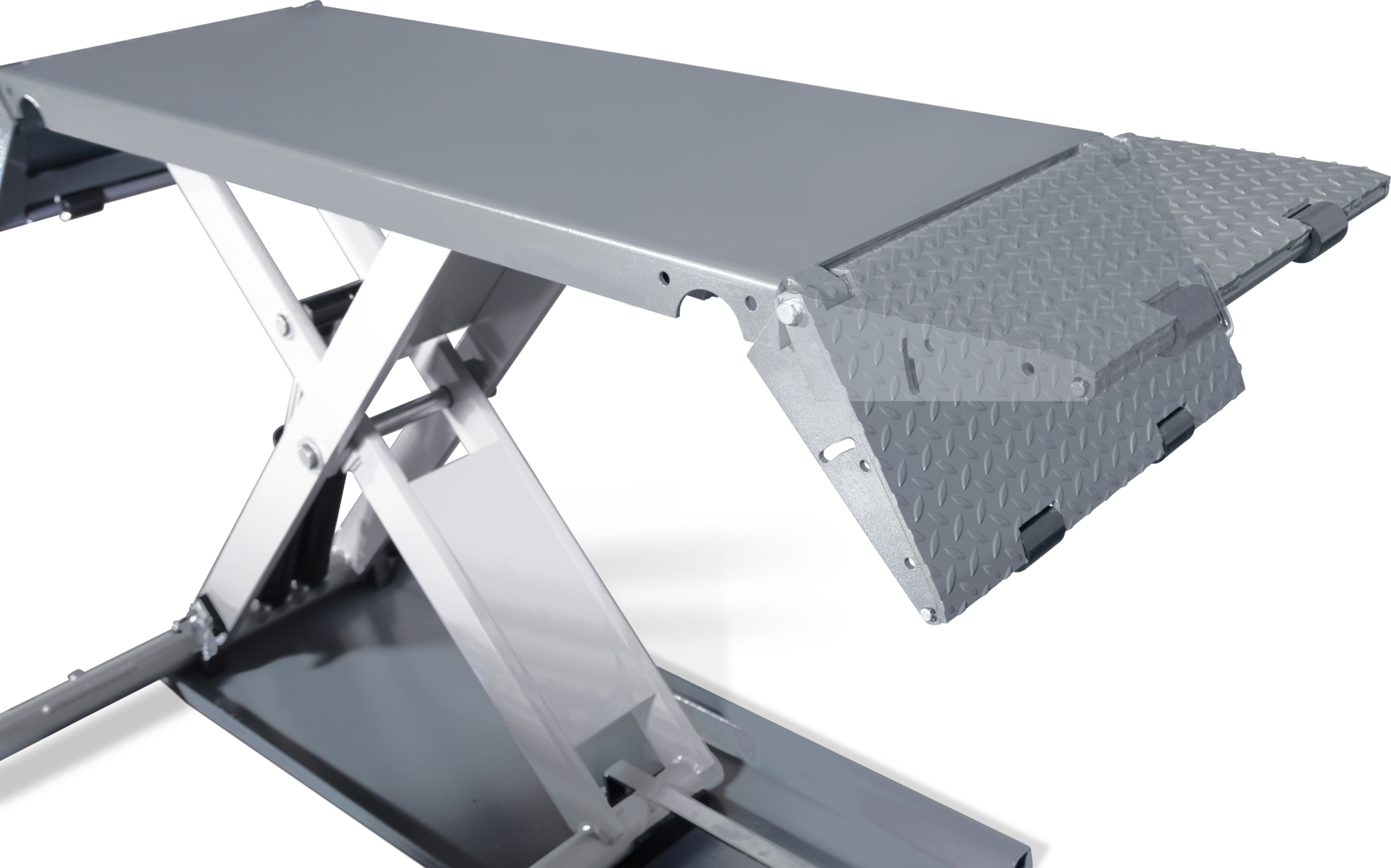

  • Simple locking of the ramps to extend the mounting area.
  • The redundant double master-slave hydraulic system makes it possible to dispense additional
  • safety catches. Double safety, which prevents lifting or lowering on one side.
  • Broad mounting range due to newly designed flexible mounting platforms.

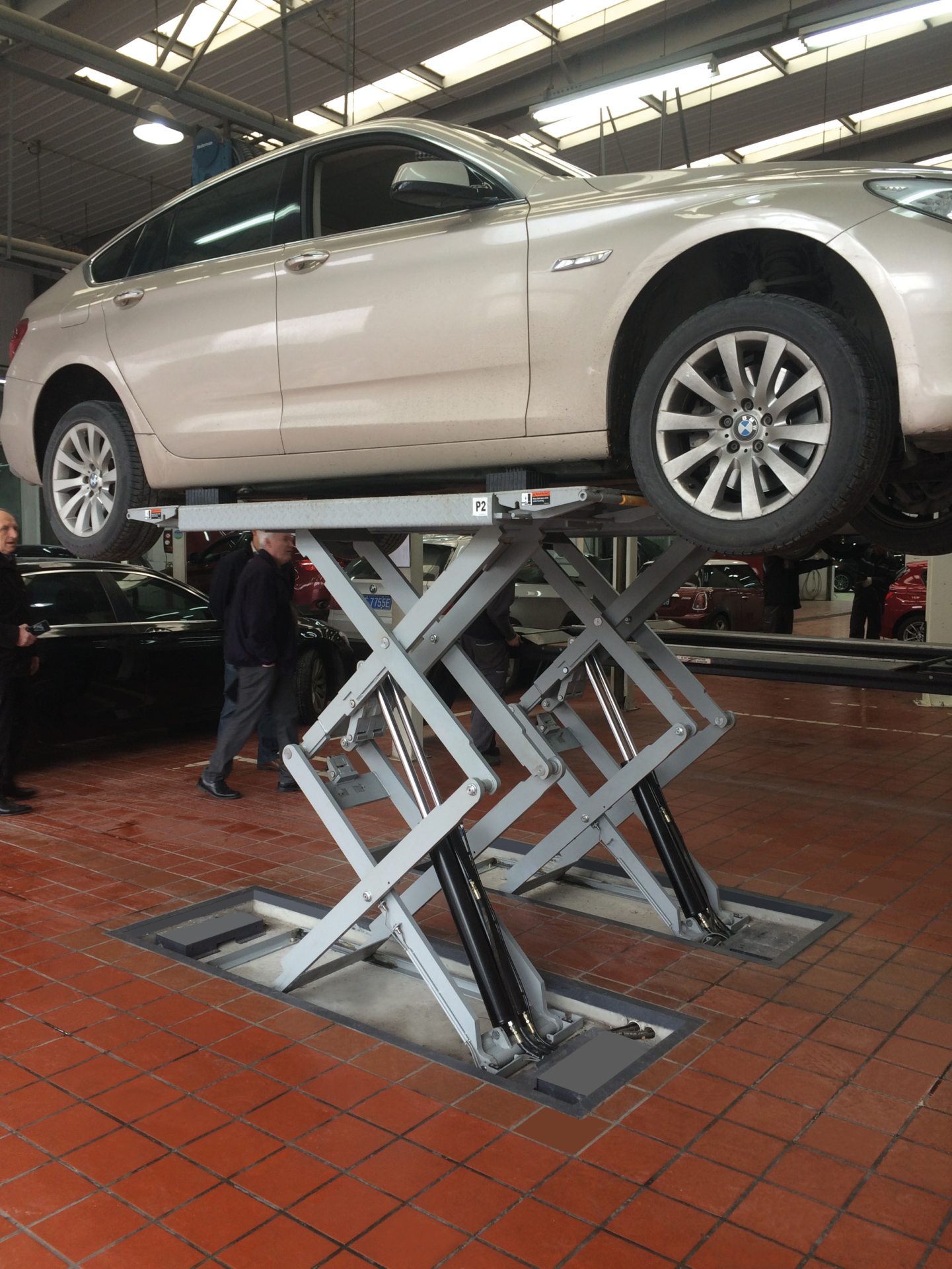

  • Easy operation of the pull-out is possible with floor-level installation.

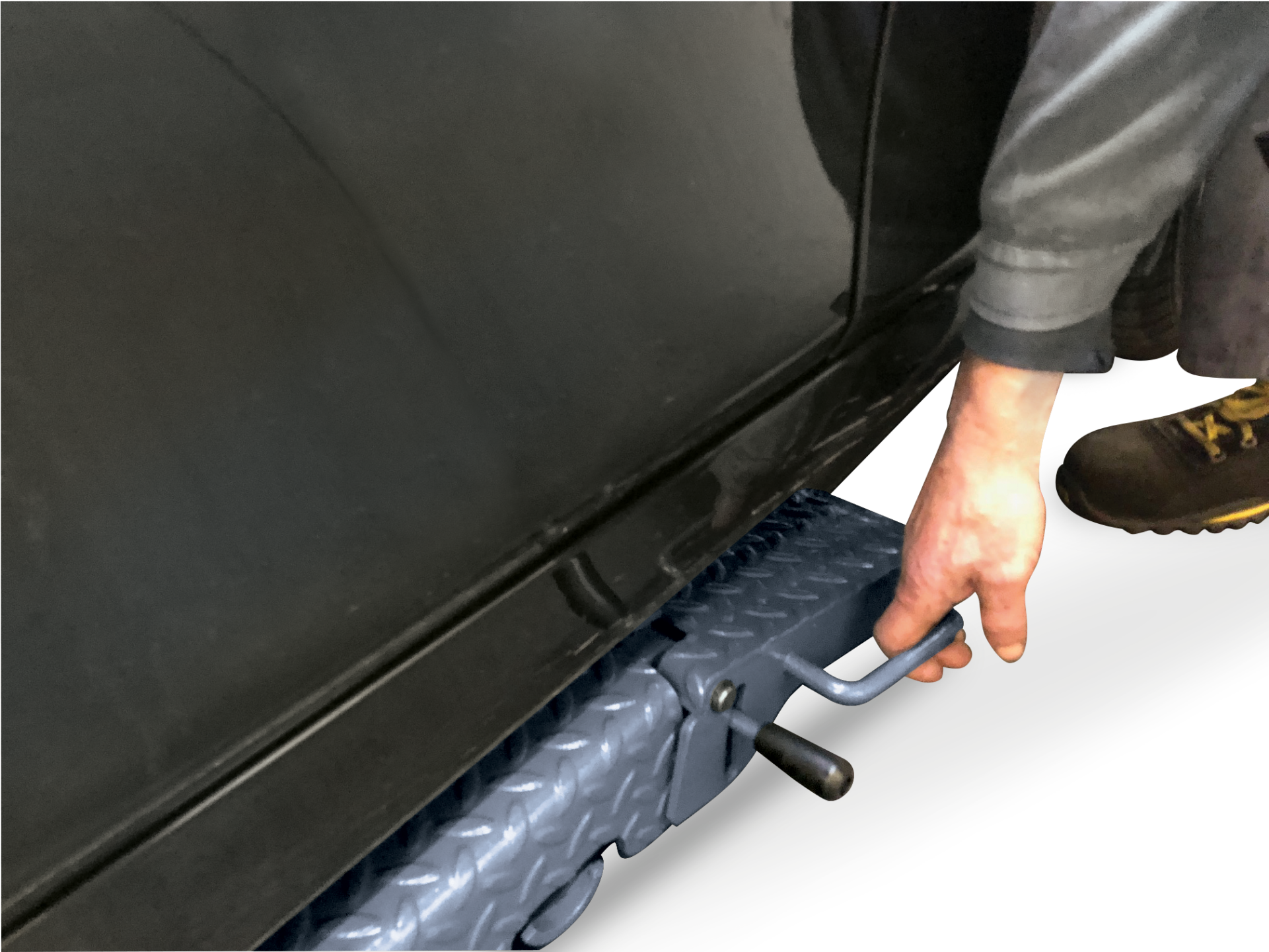

  • Easiest handling of the pull-out, even in the case of vehicles above, thanks to smart design.
  • Easy overfloor installation possible, as the platform has low clearance height.

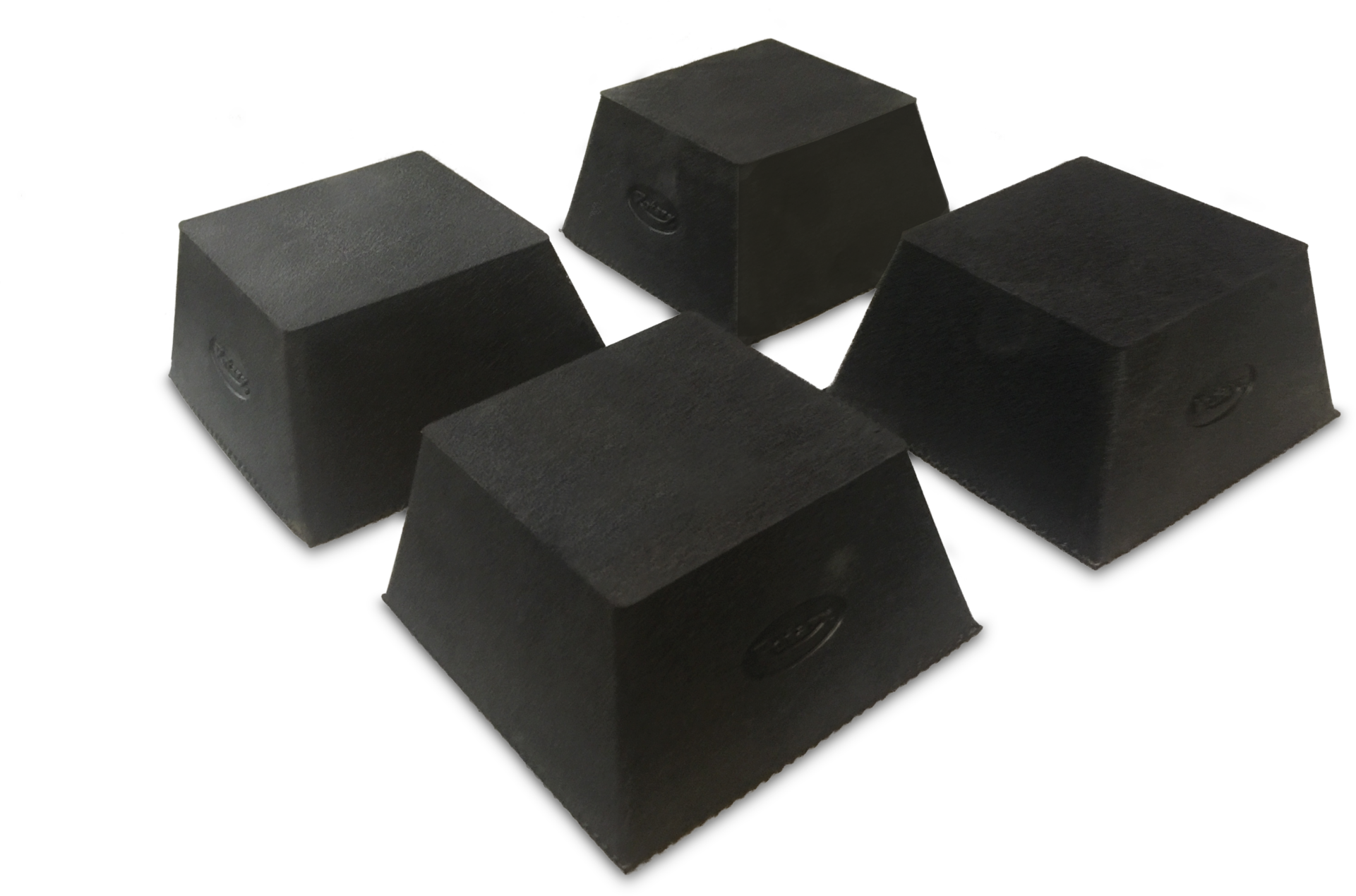

  • Rubber pads supplied reliably protect the vehicle underbody.
  • The standard-equipped CE-stop guarantees foot protection without foot deflector. This also enables underfloor installation.

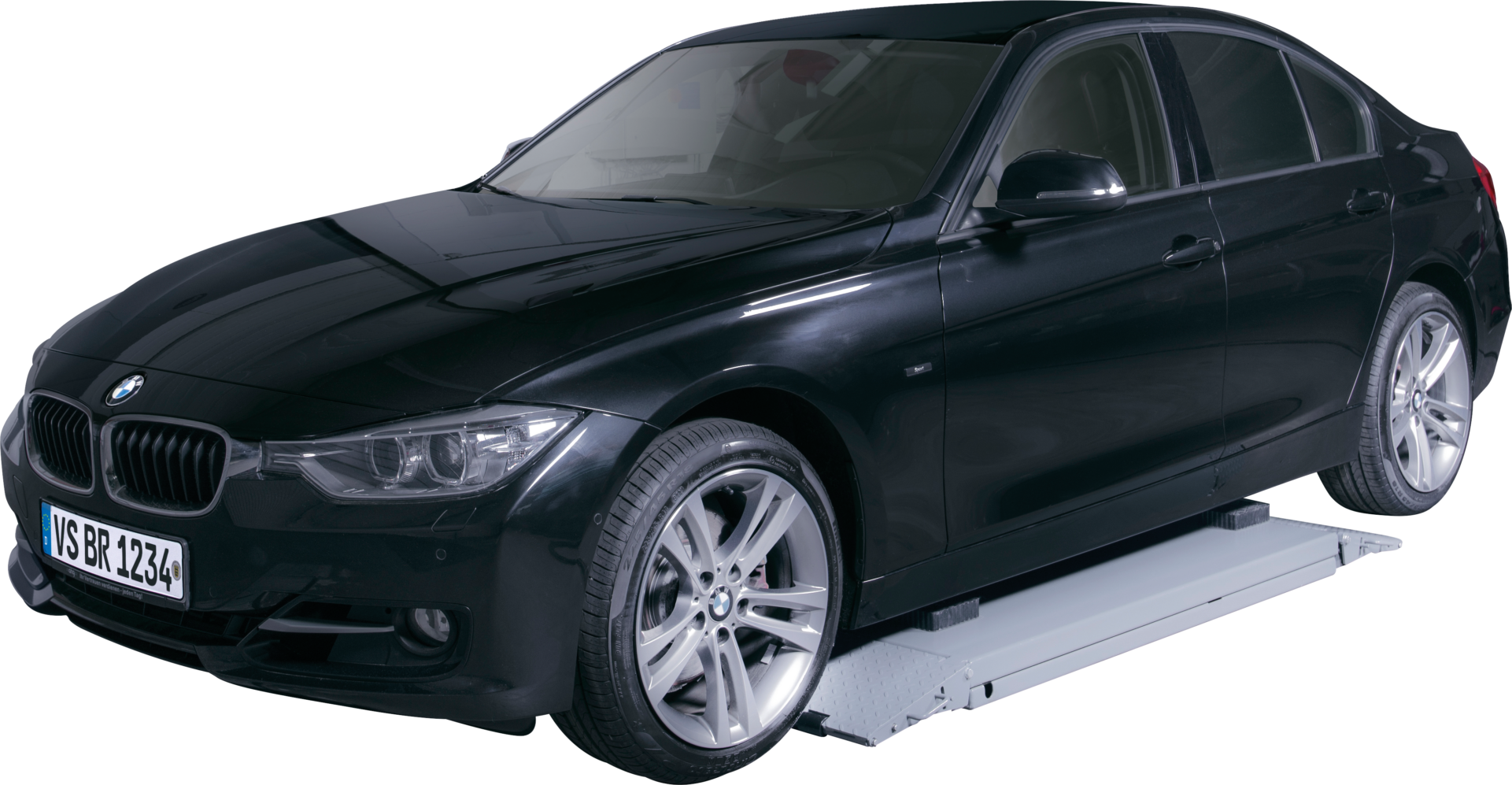

  • The low headroom makes it easier to pick up vehicles with low ground clearance.
  • The construction convinces by highest stability. They’re made from solid scissors.
  • All hydraulic cylinders are screwable. This increases service-friendliness.
  • The fully hydraulic system with integrated self-venting ensures reliable operation even in dirty environments.
  • An emergency lowering is easily possible in the event of a power failure.

Media

Similar Products

Accessories

Tech Data

FeaturesDouble scissor lift VAS 791017Double scissor lift VAS 791017Double scissor lift VAS 791025Double scissor lift VAS 791025
Scissor lift designDouble scissorsDouble scissors
Mode of driveelectrohydraulicelectrohydraulic
Type of installationfloor mountedfloor mounted
Rated load capacity3500kg3500kg
Max. lifting height1945mm1940mm
Lifting time40s40s
Lowering time40s40s
Drive-on-height105mm105mm
Surface coatingPowder coatedPowder coated
Corrosion preventingCathodic electrodeposition coating (CEC)Cathodic electrodeposition coating (CEC)
Length of platforms1500 – 2160mm1500 – 2358mm
Wheel free liftnot possiblenot possible
Driving power30kW30kW
Electrical connection400 V | 50 Hz
Width2060mm2060mm
