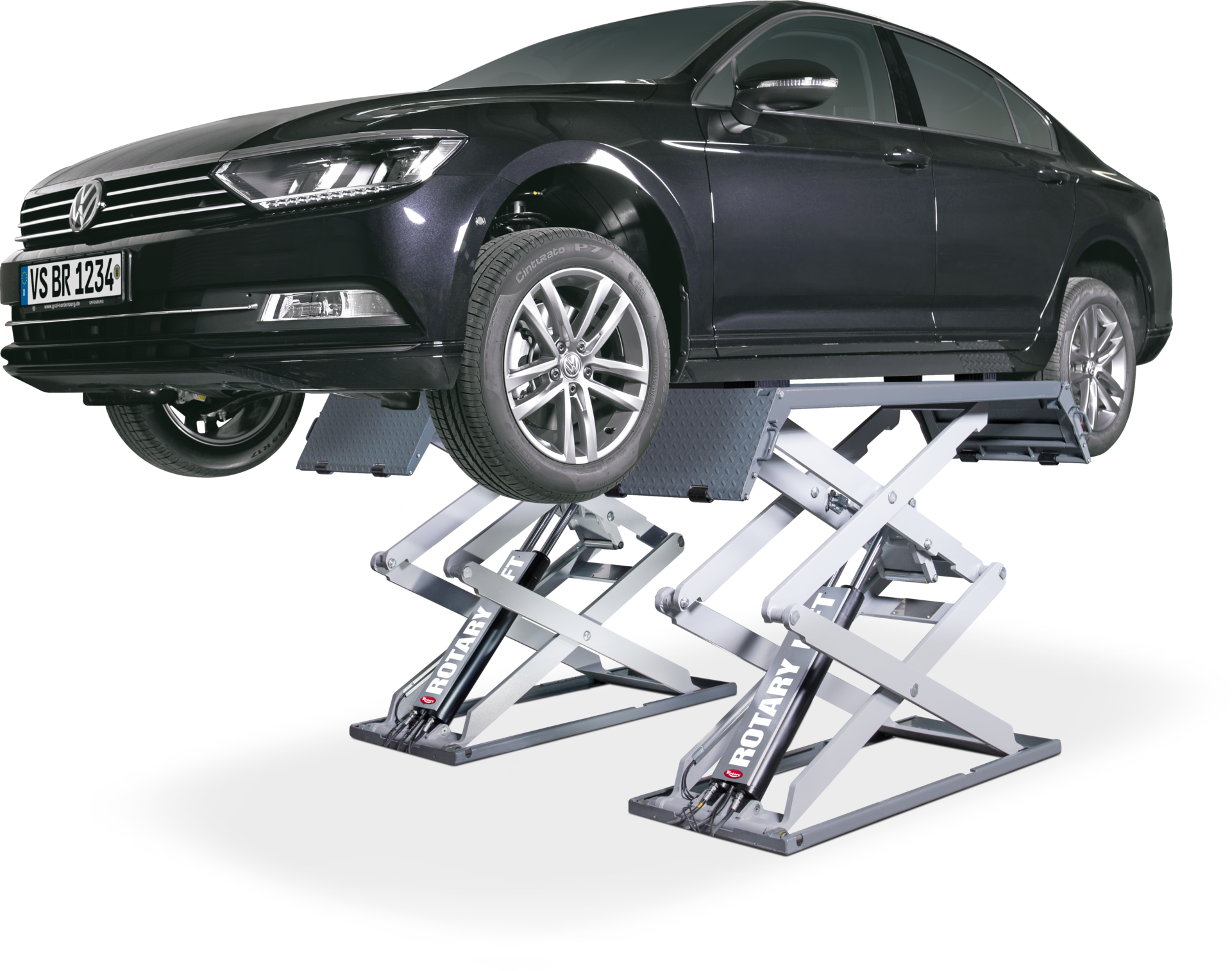

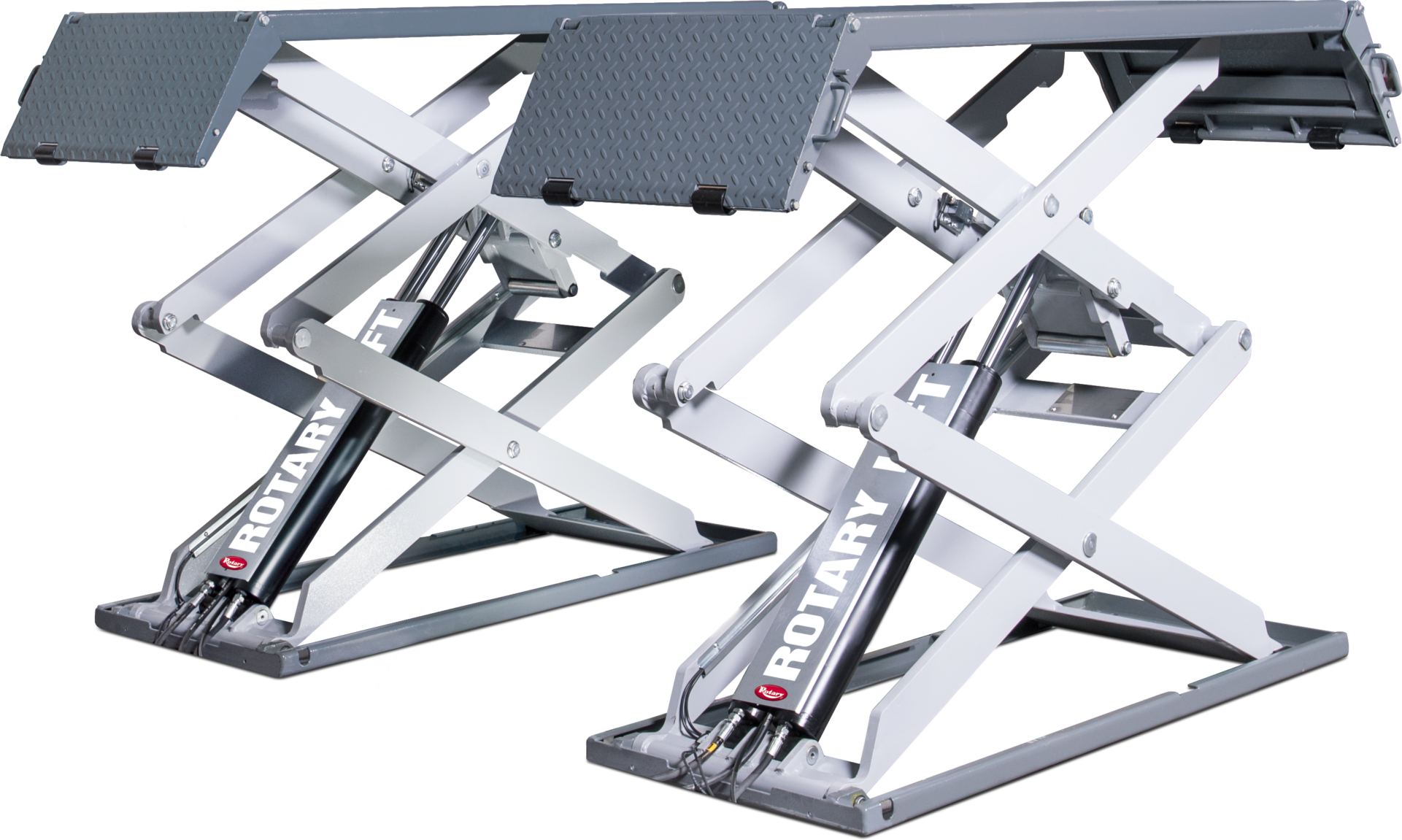

Double scissor lift DS35CAT-A

3.5 t, electrohydraulic

MPN: ROT.DS35C.195739
GTIN (EAN): 5063084195739
Category:
Tags:

Share on:

Description

The low-profile double scissor lift DS35 CAT-A has been specially designed for the service and repair sector. The newly designed flexible mounting platforms allow for a broad mounting range.

  • Best corrosion protection as standard
  • Very robust steel construction
  • Fully matured, reliable hydraulics
  • Standard cataphoresis coating with additional powder coating of the platform.
  • Simple locking of the ramps to extend the mounting area.
  • The redundant double master-slave hydraulic system makes it possible to dispense additional safety catches. Double safety, which prevents lifting or lowering on one side.
  • Broad mounting range due to newly designed flexible mounting platforms.
  • Easy operation of the pull-out is possible with floor-level installation.
  • Easiest handling of the pull-out, even in the case of vehicles above, thanks to smart design.
  • Easy overfloor installation possible, as the platform has low clearance height.

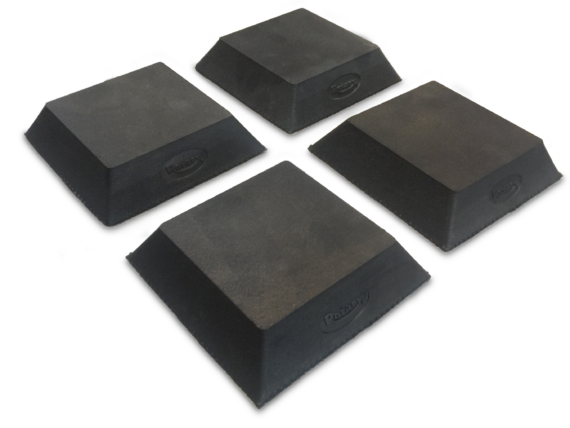

  • Rubber pads supplied reliably protect the vehicle underbody.
  • The standard-equipped CE-stop guarantees foot protection without foot deflector. This also enables underfloor installation.
  • The low headroom makes it easier to pick up vehicles with low ground clearance.
  • The construction convinces by highest stability. They’re made from solid scissors.

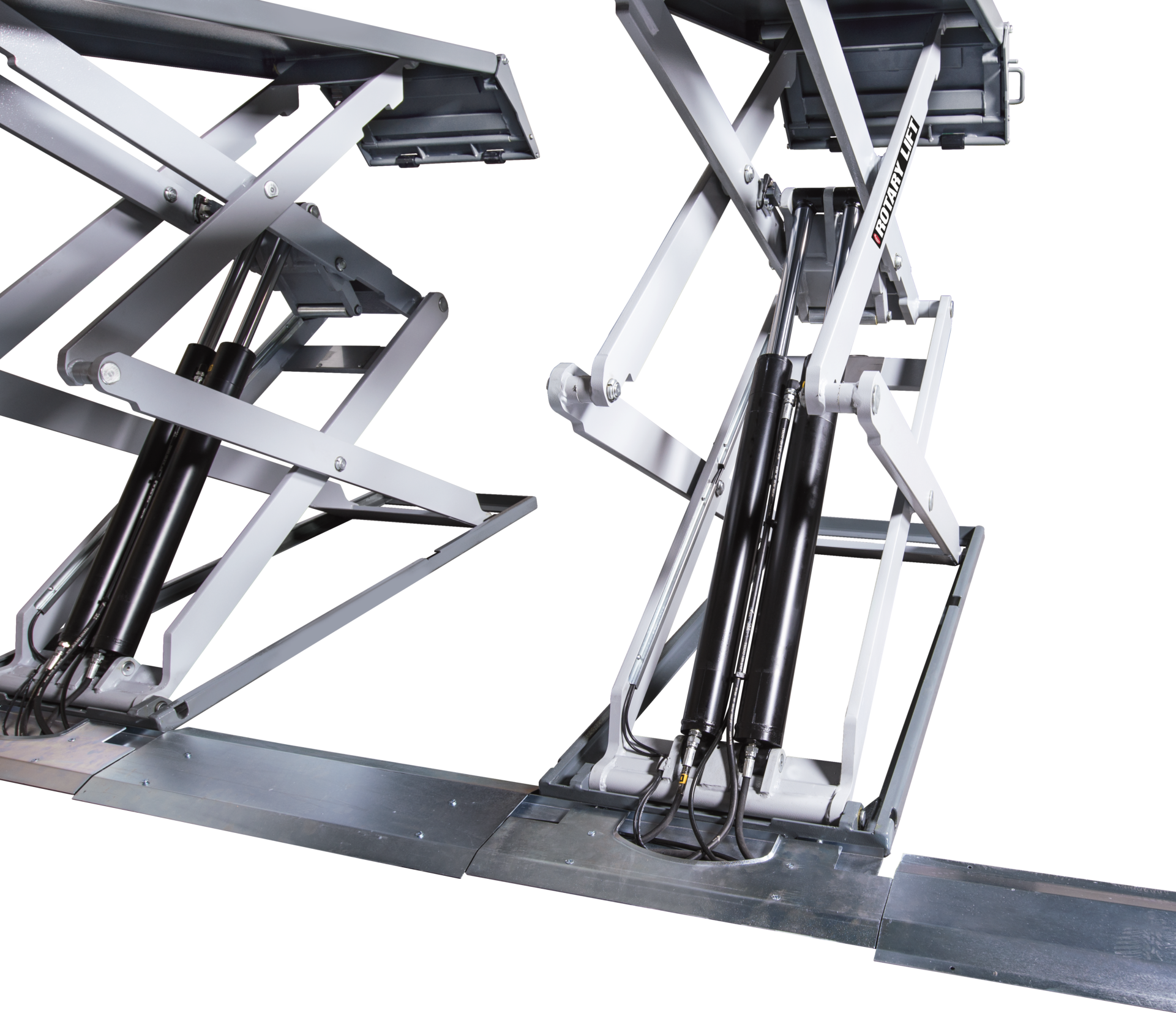

  • All hydraulic cylinders are screwable. This increases service-friendliness.
  • The fully hydraulic system with integrated self-venting ensures reliable operation even in dirty environments.
  • An emergency lowering is easily possible in the event of a power failure.
  • The base frame is hot dip galvanized.

Media

Similar Products

Accessories

Tech Data

FeaturesDouble scissor lift DS35CAT-ADouble scissor lift DS35CAT-ADouble scissor lift DS32CAT-ADouble scissor lift DS32CAT-A
Scissor lift designDouble scissorsDouble scissors
Mode of driveelectrohydraulicelectrohydraulic
Type of installationfloor mountedfloor mounted
Rated load capacity3500kg3200kg
Max. lifting height1945mm1945mm
Lifting time40s40s
Lowering time40s40s
Drive-on-height105mm105mm
Surface coatingPowder coatedPowder coated
Corrosion preventingCathodic electrodeposition coating (CEC)Cathodic electrodeposition coating (CEC)
Length of platforms1500 – 2160mm1470 – 2120mm
Wheel free liftnot possiblenot possible
Driving power30kW30kW
Power supply400 V | 50 Hz
Width2060mm
