Cric de fond de fosse Blitz R 20/15 Plus

20/15 t, levage de 1200 mm, haute vitesse, panneau de commande entièrement couvert

MPN: 117927
GTIN (EAN): 4057612223422
Category:
Tags: , , ,

Share on:

Description

Blitz pit lifts captivate with their outstandingly conceived safety design combined with ergonomic operating comfort – without compromises. This means we set standards for modern lifting technology.

  • Blitz R – the optimum in connection with rails.
  • Patented operation on both sides (optional)
  • 30 % faster lifting speed (optional)
  • Optimal Ergonomics
  • Made in Germany – 125 years’ experience
  • Patented operation on both sides (optional) – The time required to accommodate a vehicle is reduced to a minimum, it is no longer necessary to leave the pit.
  • Double acting air motor (optional) – enables a 30 % higher lifting speed.
  • Totally covered air motor makes cleaning easier and reduces the risk of injury (optional).
  • Integrated tool tray brings the tool to the mechanic, not the other way round.
  • Needle bearing-mounted chassis pulleys allow the lift to be moved about effortlessly in the pit.
  • Wheel lock for lifting unit and chassis (M & R Version)
  • Ergo Chromatics – All operating controls are marked in color with the color red and thus effectively prevent incorrect operation.
  • Ergonomic chassis – The newly designed chassis bring the mechanic closer to the lift, and therefore closer to the vehicle.
  • 2-layer surface finish – Opulent coating process for perfect protection against corrosion.
  • Slim Design – With the benefit of full lateral adjustment, the ground level construction method permits maximum freedom of movement.
  • Hydraulic-pneumatic automatic return allows the piston to return quickly with or without load.
  • Extra-long cylinder heads – Guarantee optimum absorption of lateral forces.
  • Fully hydraulic lifting unit – The piston rods are sprinkled with oil with each lifting/lowering movement – no rust on the cylinder wall and piston rod!
  • Infinitely variable creep lifting speed – important for delicate lifting and for the deployment of power units.
  • Hydraulic-pneumatic quick lift ensures a quick start-up of the piston rods up to the lifting point.
  • Operation via foot pedals – the hands remain free to carry out work on the vehicle.
  • Basic: The Entry into the World of the Blitz Pit Lift With normal lifting and lowering speeds and without cover.
  • Plus: The design for the budget-conscious operator. With all features, and just one operating unit.
  • Premium: The integrated pit lift for perfect ergonomics in the workplace. With 30 % greater lifting speed and two-sided Operation.

SOLUTIONS INDIVIDUELLES

Roulettes spéciales et châssis spéciaux sur demande

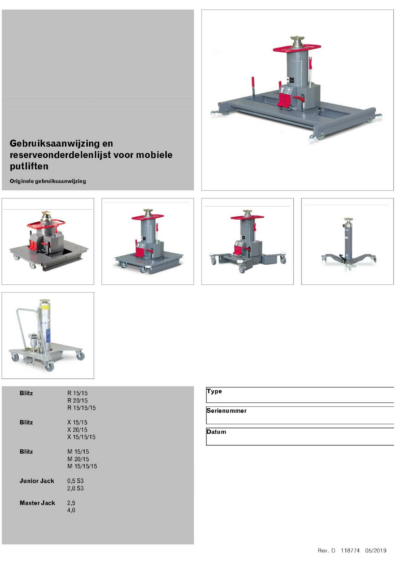

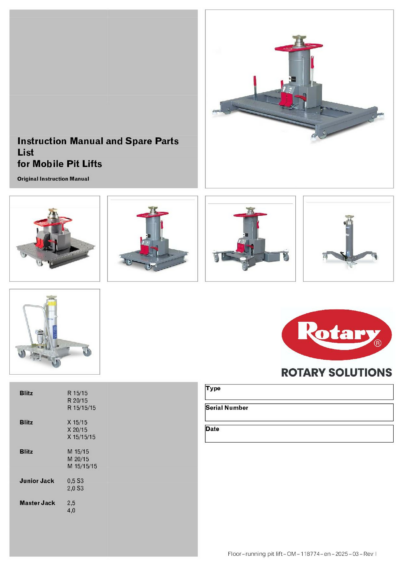

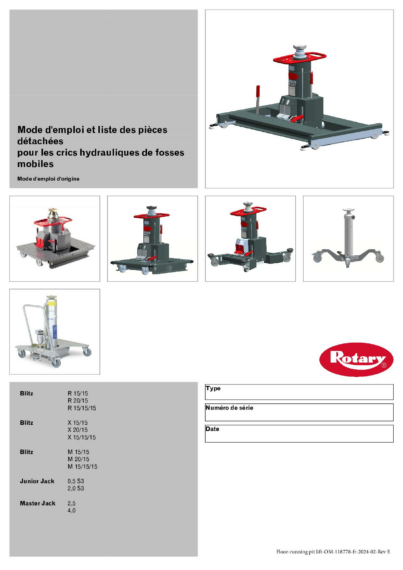

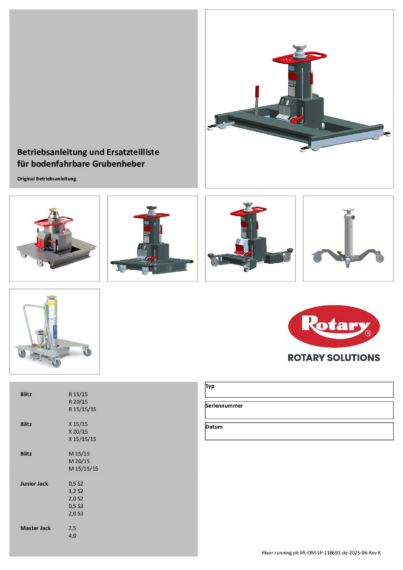

Médias

Produits similaires

Accessoires

Données techniques

CaractéristiquesCric de fond de fosse Blitz R 20/15 PlusCric de fond de fosse Blitz R 20/15 PlusCric de fond de fosse Blitz M 20/15 PlusCric de fond de fosse Blitz M 20/15 PlusCric de fond de fosse Blitz X 20/15 PlusCric de fond de fosse Blitz X 20/15 Plus
Entraînementhydropneumatiquehydropneumatiquehydropneumatique
Commandecommande au piedcommande au piedcommande au pied
Modèle de vérin de levage de fossepose au plancherpose au plancherpose au plancher
Élévateur rapidestandardstandardstandard
Retour forcéstandardstandardstandard
Télescopique2fois2fois2fois
Capacité de chargement15000kg15000kg15000kg
Premier niveau de capacité20000kg20000kg20000kg
Deuxième niveau de capacité15000kg15000kg15000kg
Course de levage1200mm1200mm1200mm
Hauteur d'élévation max.2168mm2175mm2175mm
Temps de levage chargé110s110s110s
Temps d'abaissement chargé58s58s58s
Ø de goujon55mm55mm55mm
Transportmaniablemaniable avec engrenage de course transversalemaniable
Longueur du châssis de roulement1270mm997mm1100mm
Hauteur de construction968mm975mm975mm
Pression de service298bar298bar298bar
Revêtement de surfaceVerniVerniVerni
Protection contre la corrosionVernis Ultra High Solid (UHS)Vernis Ultra High Solid (UHS)Vernis Ultra High Solid (UHS)
Alimentation en air comprimé10bar10bar10bar
Alimentation en air comprimé max.15bar15bar15bar
Poidsnach Grubenmaß
