Description

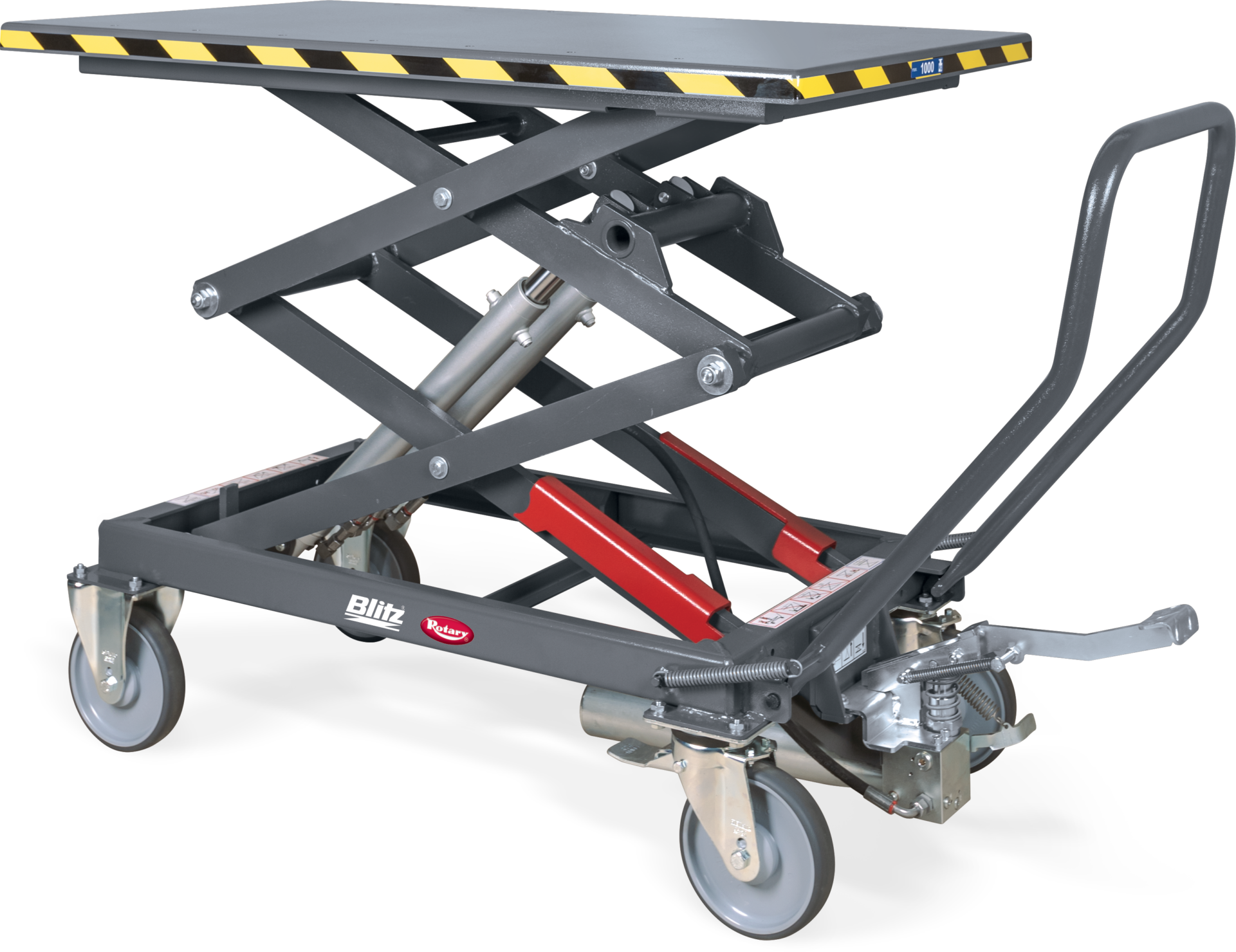

Universal lifting table with 1 t load capacity. Suitable for safe and easy removal and installation of engines, transmissions, HV batteries, and chassis components. Developed based on 20 years of experience as a producer of lifting tables in cooperation with the major automotive manufacturers.
- Simple and flexible handling
- Reliable mounting and fastening of components
- Wide range of accessories for all applications
- The compact design provides plenty of space underneath the vehicle
- Large castors and parking brakes ensure excellent mobility in the workshop
- Easy to maneuver even with load thanks to plastic rollers with ball bearings
- A wide range of accessories (available separately) makes the lifting table an indispensable and universally usable workshop too
- 14 mounting holes arranged on both left- and right-hand side of the platform offer plenty of possibilities to mount mounting tools
- The shallow, slim design and the handle that can bemove vertically, make positioning underneath the vehicle very easy

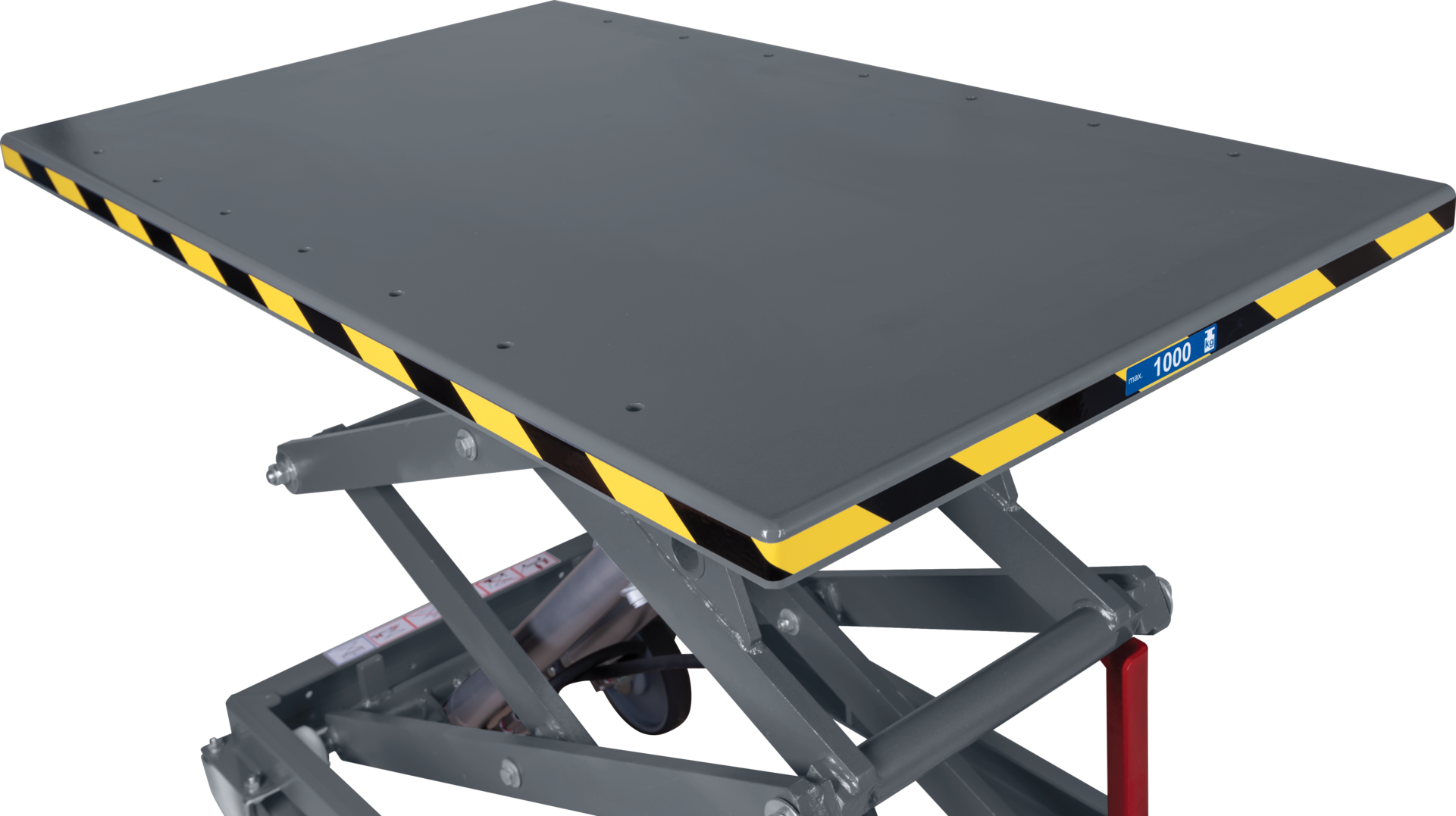

- Fixed mounting plate with 2×7 holes for secure mounting of various supports

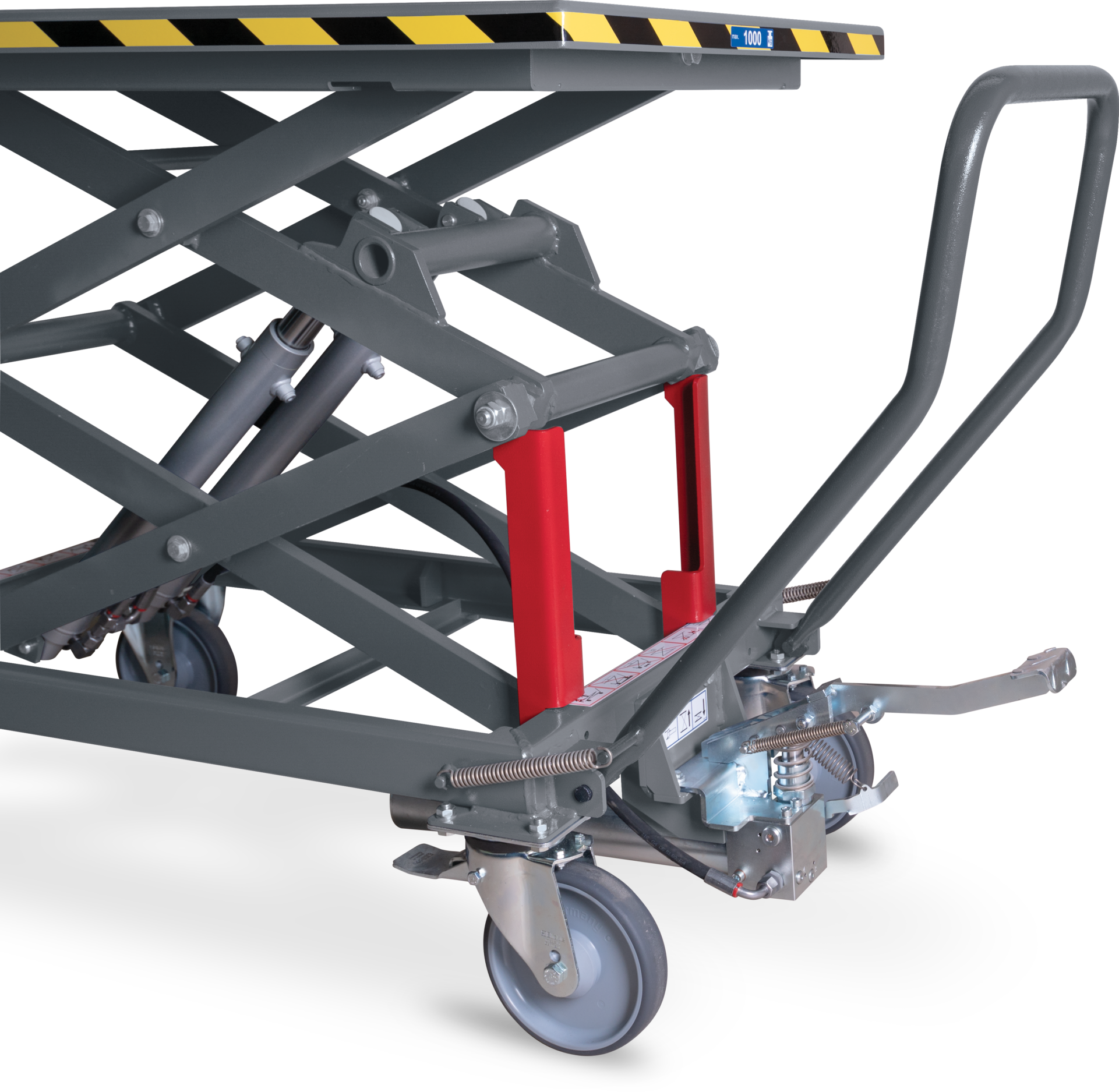

- Using standard maintenance permits safe working when servicing the lifting table

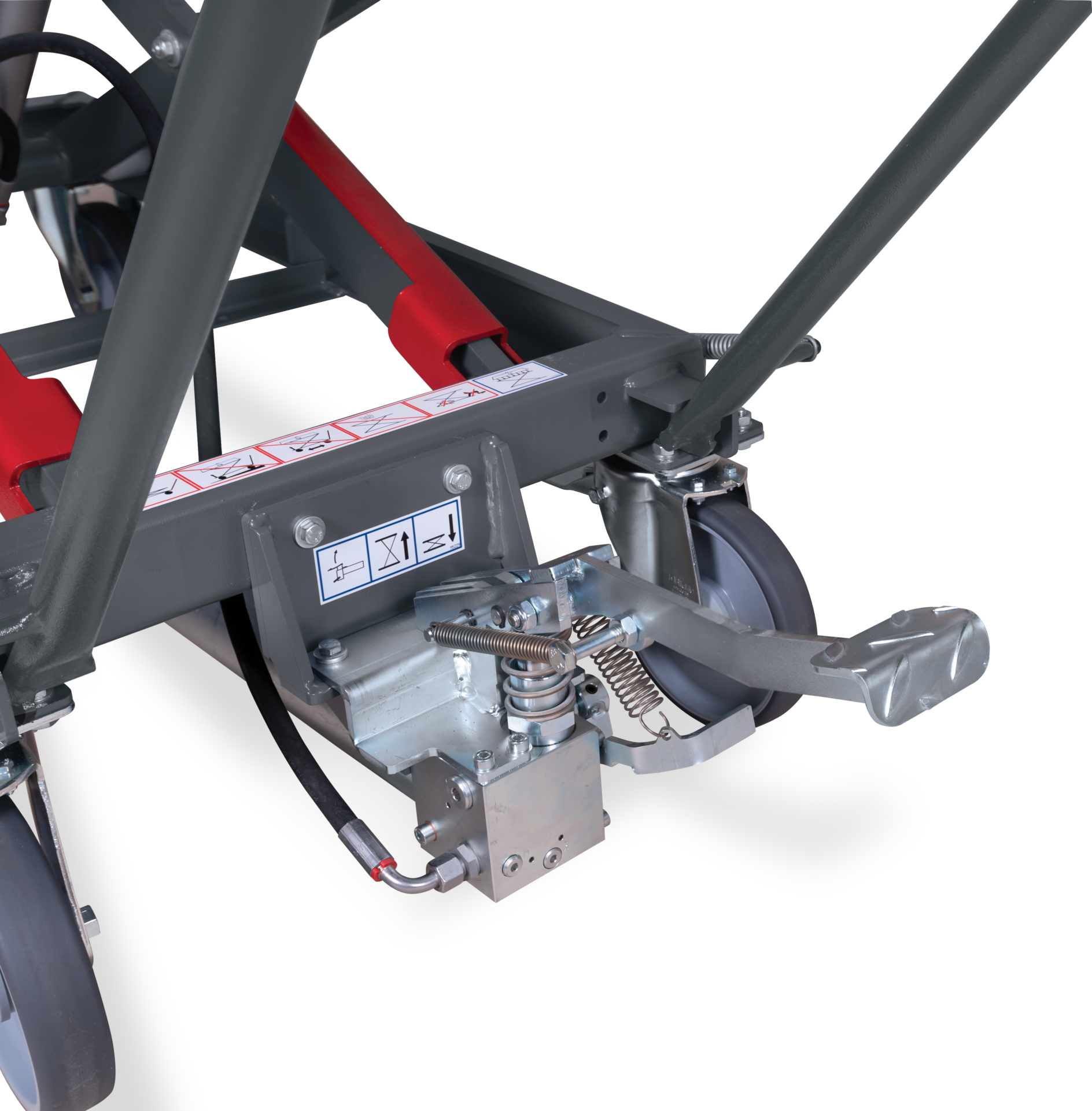

- The hydraulically controlled lifting load stroke, which is activated by foot using a floor-mounted button, triggers the double-acting pump that ensures lifting any load quickly and effortlessly – The integrated lowering brake valve allows an exact dosing of the lowering speed.

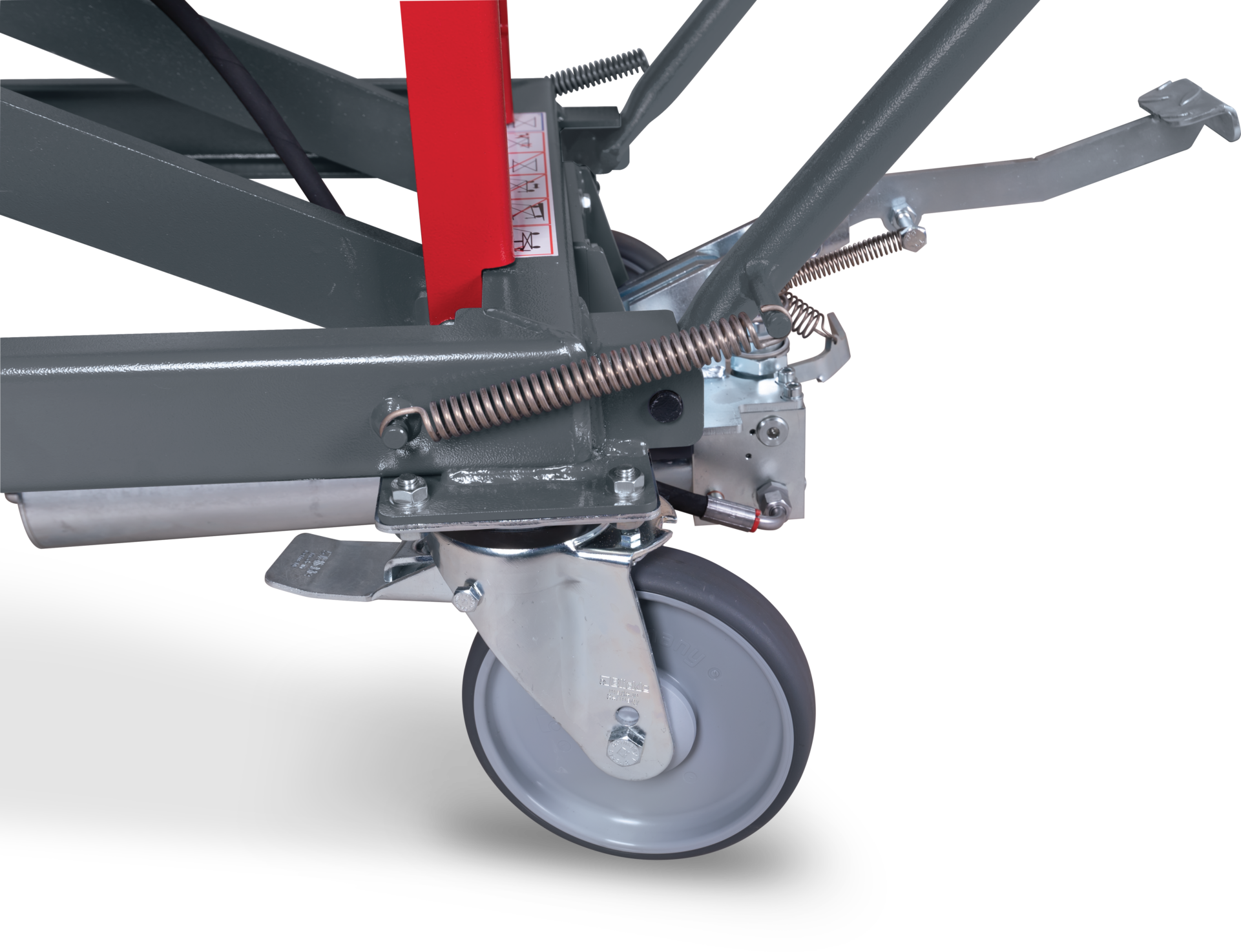

- Two castors with integrated parking brakes make manoeuvring easy and parking safe.
