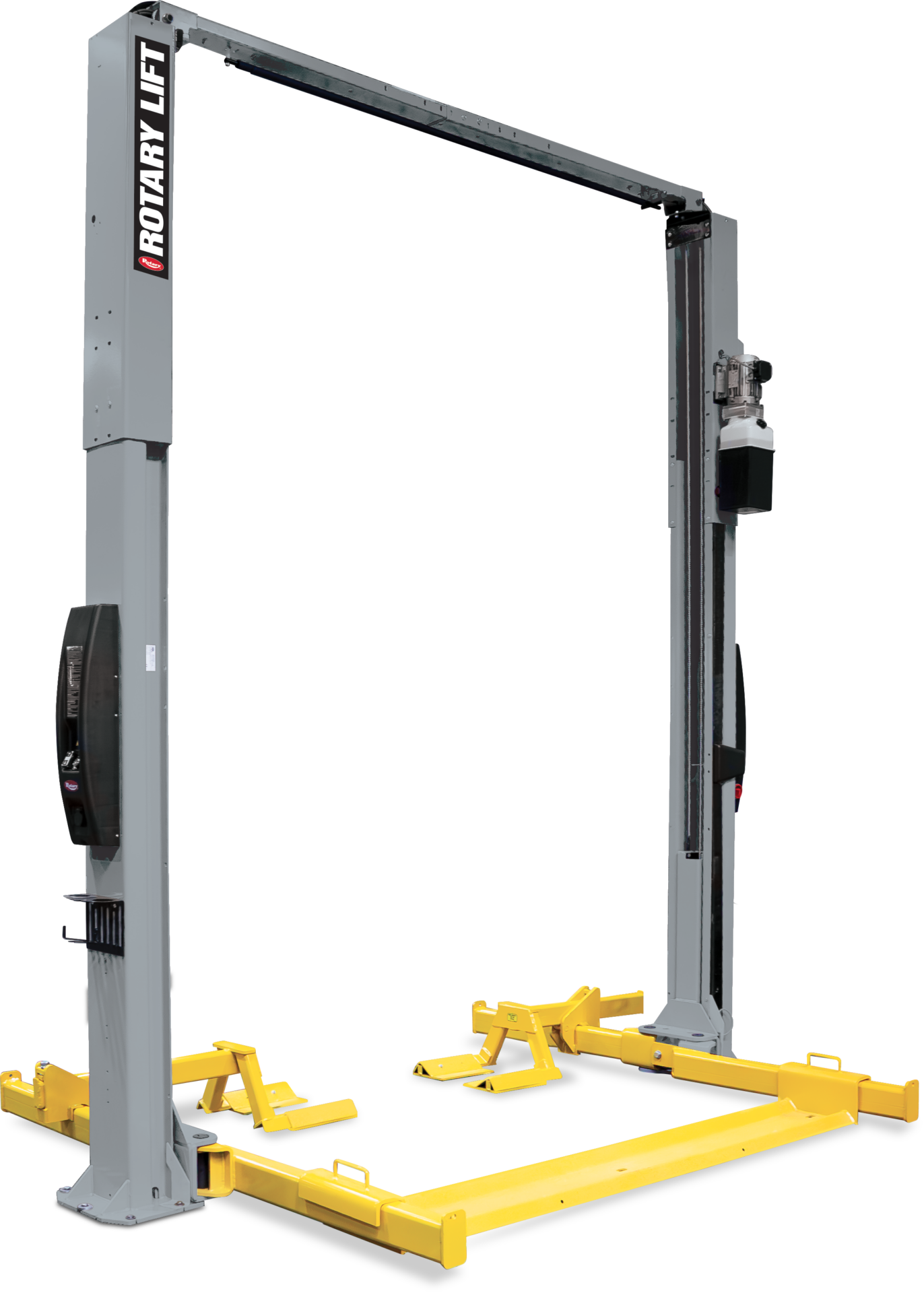

2-post lift TLO7

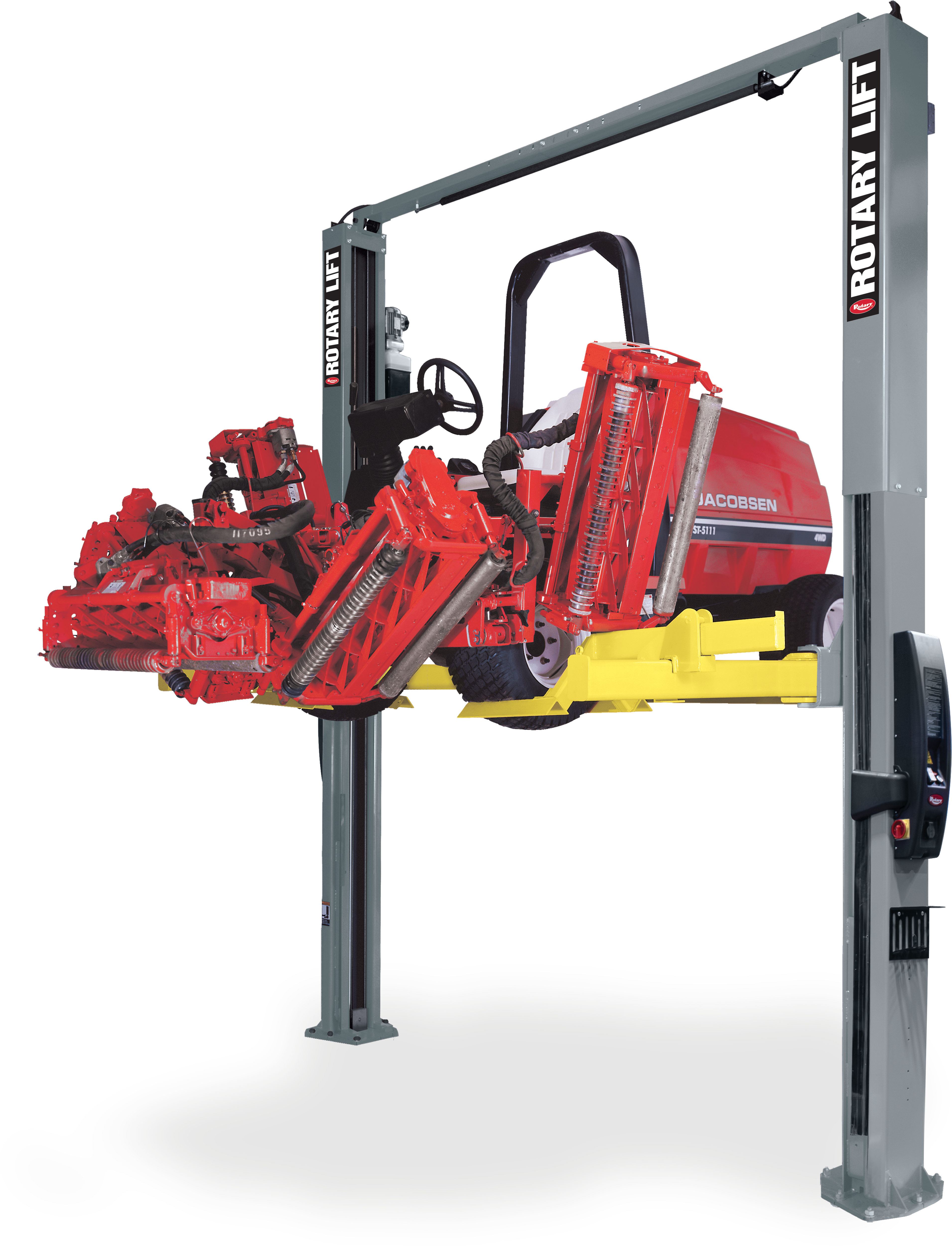

Ideal to lift garden machinery, golf carts and mini tractors: 1.1 – 2.3 t, for 3-wheel (1100 kg) and 4-wheel (2300 kg) turf equipment, electro – hydraulic, asymmetrical, total height 4166 mm

MPN: ROT.TLO7T.199676
GTIN (EAN): 5063084199676
Category:
Tags:

Share on:

Description

  • Provides easy access to reels and hydraulic systems.
  • Wheel engaging chocks wheels automatically.
  • Lift can accommodate both 3-WHEEL (1100 kg) AND 4-WHEEL (2300 kg) TURF EQUIPMENT.
  • OVERHEAD CABLE EQUALIZATION for unobstructed floor surface.

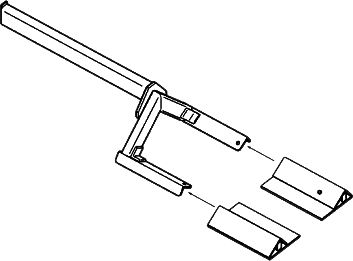

    • Wheel adapter kit to raise vehicles with less than 330 mm wheels.
    • THE DUAL CONTROL PANELS – one on each side of the lift – ensure that you have complete control no matter where you’re standing, streamlining your workflow and enhancing efficiency.

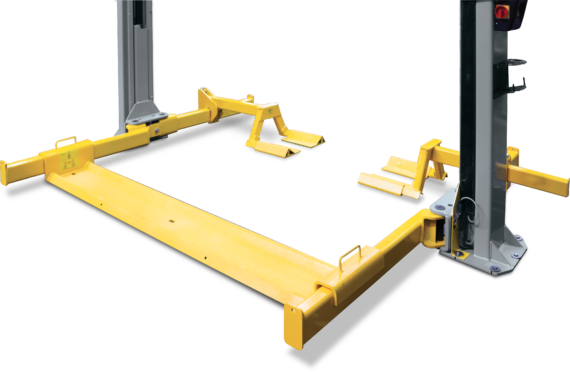

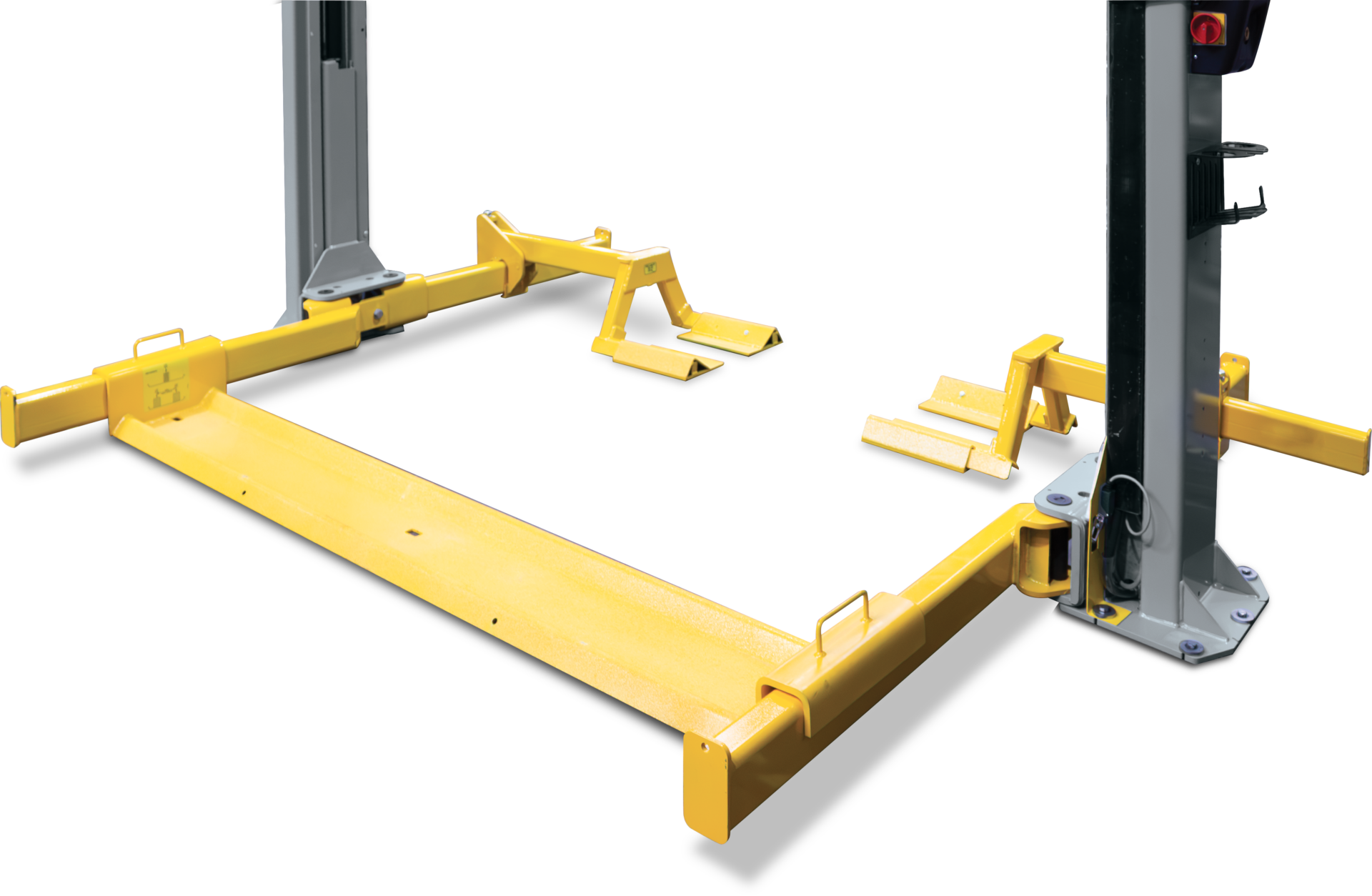

    • ADJUSTABLE DRIVE-OVER RAMPS AND SIDE RAILS provide the width to support wider vehicles during approach.

Media

Similar Products

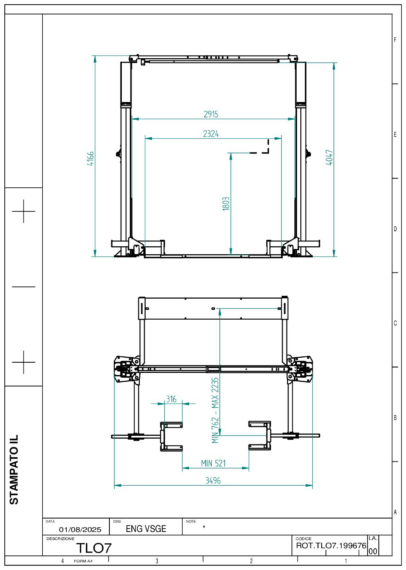

Tech Data

Features2-post lift TLO72-post lift TLO72-post lift SPOA3TS-5-EH12-post lift SPOA3TS-5-EH1
Number of columns22
Capacity1100 – 2300kg3500kg
Column layoutAsymmetricalAsymmetrical
Mode of driveelectrohydraulicelectrohydraulic
ControlOn both sideselectric
Energy kitStandard
Type of installationsurface mountedfloor mounted
Max. lifting height1803mm1957mm
Lifting time45s30s
Lowering time40s
Cylinder height at max. stroke3778mm
Clear span between2915mm2560mm
Drive-through width2324mm2336mm
Switchoff level4032mm3760mm
Required ceiling height4200mm3925mm
Wheelbases wheel alignment762 – 2235mm
Arm layoutasymmetricalasymmetrical
Driving power3kW4,0kW
Electrical connection230/400 V | 50 Hz400 V | 50 Hz
Phases3
Width3496mm
Height4166mm3865mm
Weight980kg
